Standard Features

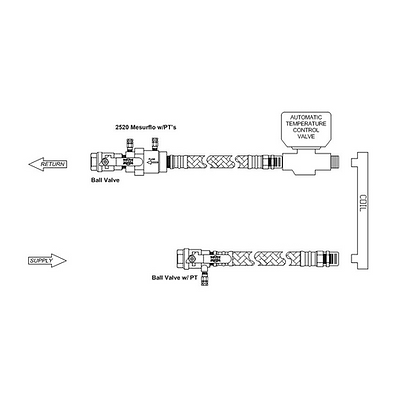

Inline Mesurflo with Pressure/Temperature Ports
Lever Handle
Stainless Steel Braided Hose (2)
Hose Lengths 12", 18", 24" & 36"
Ball Valve with Pressure/Temperature Port
Each Complete Hose Kit Banded Together with a White Plastic Tie Wrap
Options
Hays Supplied & Installed Electronic Control Valve:
1" - 2-Wire 24v, Zone Valve, Spring Returned, Normally Closed
1-1/4" - 1-1/2" - 2-Wire 24v, Ball Valve, Spring Returned, Normally Closed
Custom Hose Lengths Available
Custom Tagging Upon Request
Reducing Adapters Available
Stainless Steel Tag-Chain Upon Request
Y-Ball Strainer with Pressure/Temperature Port & Blowdown Valve w/Hose Connector (Replaces Ball Valve with Pressure/Temperature Port)
Size
3/4 in., 1 in., 1-1/4 in., 1-1/2 in.
Model No.
2520-HOSE-KIT
Type
Automatic Balancing Valve Hose Kit
Flow Rate
10.0 to 25.0 GPM
Material
Stainless Steel Braided Hose
Specification No.
ABHK-SPEC-2520-002
